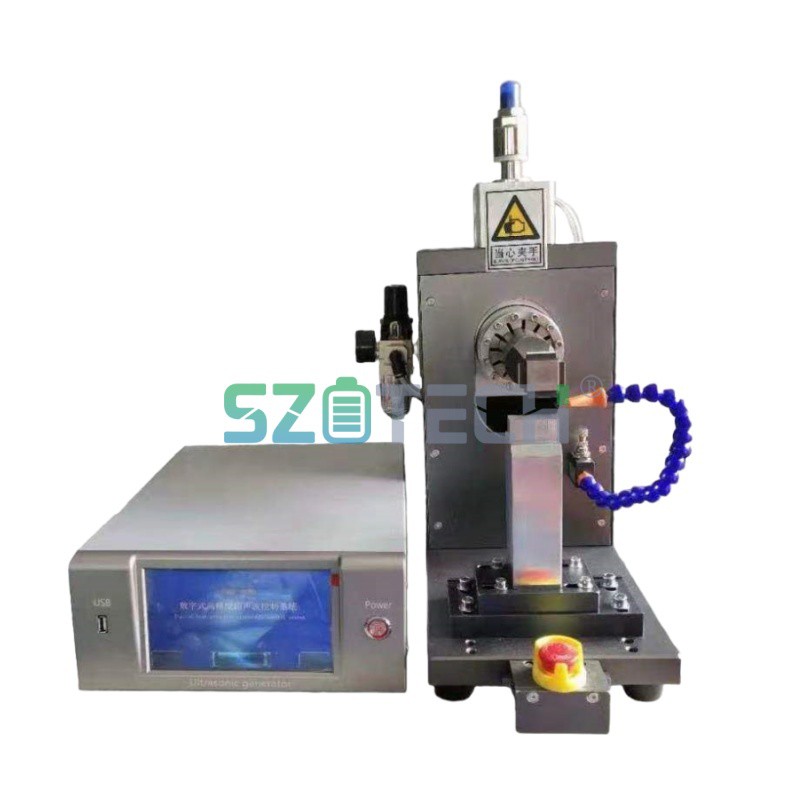

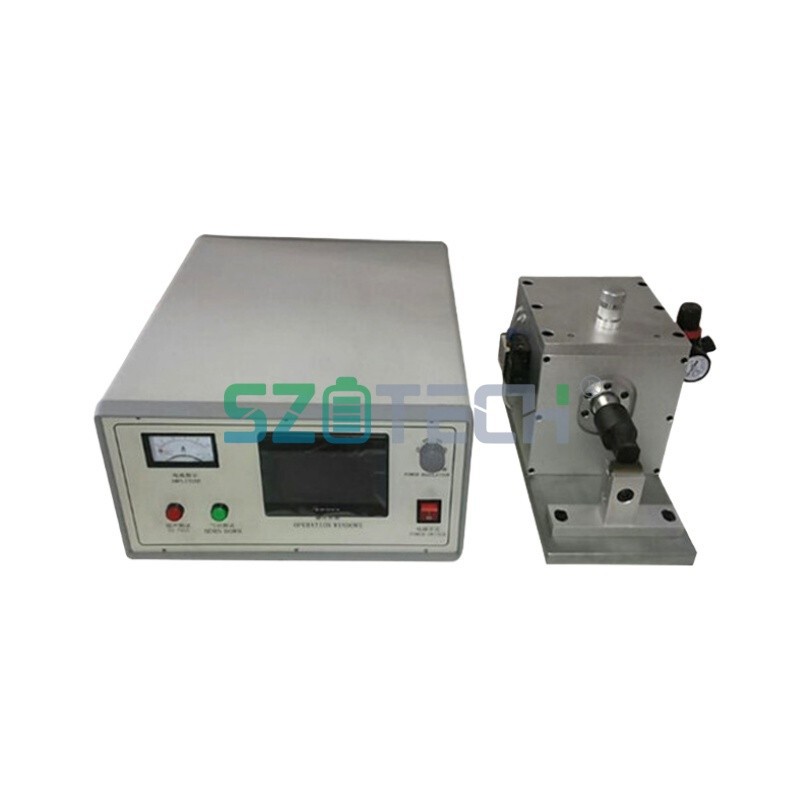

Mekini wiliwili Tab

ʻO kā mākou mīkini hoʻoheheʻe pahu pahu he mea hana wiliwili ʻoihana i hoʻohālikelike ʻia no ka hana ʻana i ka pākaukau lithium, e kākoʻo ana i ka hoʻoheheʻe ultrasonic/laser o ka nickel, copper, a me nā pahu alumini. Me ka ± 0.02mm ka pololei o ka hoonoho ana a me ka huli alapine 'akomi, e hooiaio ana i ka spatter -free, metallurgical bonds no 10-60 papa o na electrode foils.
Hoʻohālikelike me 18650, 4680 cylindrical, a me nā ʻeke ʻeke, kūpono ia i ka lab R&D a me ka hana nui. Hoʻolako ʻia me ka mana PLC a me ka alignment ʻike maka CCD, hoʻonui ia i ka maikaʻi o ka welding i 100-200PPM ʻoiai e mālama ana i ka 99.7% pass rate. Hoʻonui ia i ka hana ʻana o ka pākaukau a me ka palekana, kūpono no ka hana ʻana i ka mana / mālama ikehu.

Lako Lako

Nui Lako:
Nui o ka mea hana (Loa×Lā‘a×Ki‘eki‘e): 480mm x365mm x202mm
Ka nui o ka Prow (Length×Wideth×Kiʻekiʻe (mai luna)): 420mm x180mm x290mm

Kaumaha: 62KG
Hoʻohana nā mea hana ana a pau i nā ʻāpana metric.

Pono mana lako

Voltage: 220VA ± 10%, Air Source: 0.4 ~ 0.6MPa; Haʻahaʻa: ＜48%, Mahana: ʻAʻole ma mua a i ʻole like me 45 degere

Hoʻohui lako
Aia nā mea hana i:

• Kani ultrasonic generator, ikehu converter, horns, pneumatic mea a me mechanical frame, etc.
• Piha -alahaka kiʻekiʻe{1}}kaapuni mana;
• ʻO nā kiwi i hana ʻia mai ka hao hou;

ʻO nā koi kūpono no ka mīkini holoʻokoʻa:

• Hana ʻia nā ʻāpana a me nā ʻāpana mai nā mea metala.
• Mālama ka ʻōnaehana module i ka lawe maʻalahi.
• ʻO ka mana hoʻokele hana he pneumatic drive.
• ʻO ke kumu mana hana he mana hoʻokahi.

Kumukuai-e-hoohana

• ʻAʻahu wikiwiki nā kiwi -mau ʻāpana, e hāʻawi ʻia kahi palapala hoʻopaʻa 3 mahina no ka pū o luna.
• ʻO ka hoʻololi wāwae he 1.5 miliona mau pōʻai.
• He 1.5 miliona mau pōʻaiapuni ka hoʻohana ʻana o ka relay uila.

Hoʻomalu palekana
E hāʻawi wale ʻia nā mea hana i kūpono i nā koina hale hana.
'Ōlelo no ka hoʻohana:
1) Ke hōʻike like ʻole ka hopena kuʻi ʻana, e ʻoluʻolu e kāpae i ka hana ʻana i ka mīkini, a i ʻole e manaʻo ka mea hoʻohana i ka poho a i ʻole ka pōʻino iā ia iho;
2) He mau ʻāpana hikiwawe nā pū, e ʻoluʻolu e nānā i ka ʻāʻili ʻana o ke kālā ma ia mau mea a hoʻololi i nā mea i kahiko ʻia i ka manawa.

Nā Koina ʻenehana

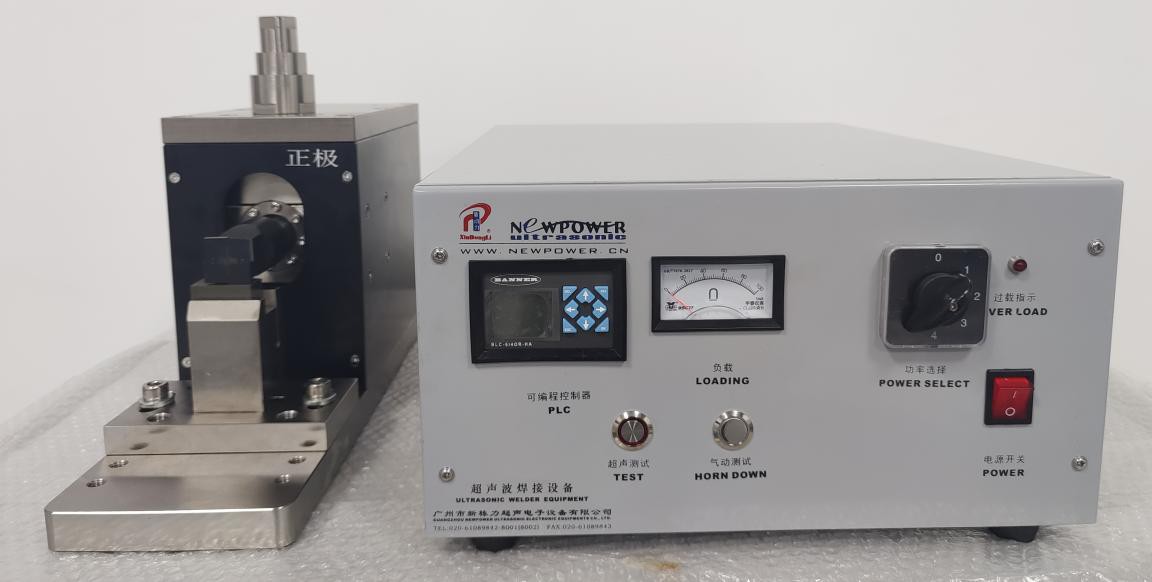

ʻO ka mana nui loa o ka welder NP1000 he 1000VA, ʻo ke alapine ultrasonic he 20 KHZ ± 10%; ʻO nā kiʻi ma lalo nei o Ⅱ,Ⅲ a me Ⅳ ke ʻano o ka mīkini piha, ka pū kiʻekiʻe a me ka pū lalo a i ʻole ka anvil.

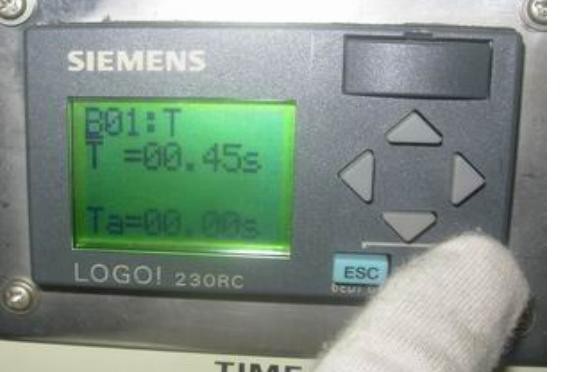

(Kiʻi Ⅰ) ʻO ka manawa, ikehu, mana a me ke ʻano hohonu i hōʻike ʻia ma ka pale paʻi o ke kanaka naʻauao- ʻōnaehana hoʻomalu kamaʻilio mīkini.

ʻO keʻano o ka mīkini holoʻokoʻa

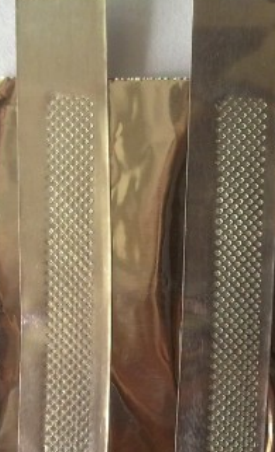

Welding Technique 1: ʻO ka hopena kuʻi ʻana o 1 papa o 0.1mm mānoanoa o ke kaula Al me 10-20 papa o 0.012mm Al foils, ʻo 5 * 20mm ka ʻāpana hui, hiki ke hoʻohana ʻia nā ʻaoʻao ʻelua o ka pū.

Hoʻokumu i nā lako a me ka hoʻomaʻamaʻa limahana

Nā lako hana:
E haʻi aku ka mea kūʻai aku i nā mea hana i nā kikoʻī e pili ana i ke kūkulu ʻana i nā mea hana a me nā mea pono a me nā mea hana.
E kākoʻo ka mea kūʻai aku i ke kūkulu ʻana ma ia wahi.

Hoʻomaʻamaʻa limahana:
I ka wā o ke kūkulu ʻana, e hoʻomaʻamaʻa nā limahana o ka mea kūʻai aku i ka mea hoʻohana ma ia wahi, ʻo ka ʻike hoʻomaʻamaʻa e pili ana i ka hana maʻamau, mālama a me ka mālama pilikia, a pēlā aku.

Ma hope o ke kūʻai aku

• Hāʻawi ka mea kūʻai aku i 1-makahiki palapala hoʻokō mai ka lā i loaʻa ai i ka mea kūʻai aku ka lako koe naʻe nā ʻāpana ʻaʻahu wikiwiki e like me nā pū, ka wāwae wāwae a me ka hoʻokuʻu uila. Ma waho aʻe o kēlā mau ʻāpana ʻaʻahu wikiwiki, no nā ʻāpana hemahema ʻē aʻe, na ka mea kūʻai aku ke kuleana no ka hoʻololi manuahi inā loaʻa nā mea ʻaʻole kanaka.
• I ka pau ʻana o ka palapala hōʻoia, pono ka mea kūʻai aku e uku no ka lawelawe hoʻoponopono a mālama ʻia e ka mea kūʻai aku.

Papa papa inoa

ʻO nā ʻāpana nui o NP1000 Smart ultrasonic metal welder (ka nui no ka mīkini hoʻokahi):

Ka papa inoa o nā ʻāpana ʻāpana (ka nui no ka mīkini hoʻokahi):

ʻO nā mea hoʻolako o nā ʻāpana nui a me nā ʻāpana:
